Installation Guide
Bushing Grease Instructions
Complete instructions for proper installation and greasing of polyurethane suspension bushings.
IMPORTANT: Correct Grease Type
✓ MUST use a Lithium or Silicon based grease when fitting or servicing polyurethane bushings.
✗ DO NOT use Wheel bearing or Rubber grease on our supplied polyurethane bushings.
⚠️ Failure to use correct grease or incorrectly cleaned fitment area will void warranty.
Pre-Installation Preparation
Before fitment of polyurethane bushings, care must be taken to:
- Remove any surface rust/scale from mating surfaces
- Remove sharp edges from mounting points
- Clean and remove all remnants of original rubber or polyurethane bushings
- Clean or replace damaged/rusted shackle pins and bolts when required
Contributing Factors to Noise Complaints
Common issues that can cause noise problems with polyurethane bushings:
- •Surface mating areas have not been thoroughly cleaned
- •Damaged/Rusted shackle pins/bolts not being cleaned properly or replaced when required
- •Retro fitment of bushing to non-catalogued positions
- •Manufacturer not designing their bushings to correct tolerances or using cheap raw materials for manufacture
- •Incorrect or not enough correct grease being applied
Correct Greasing Locations by Bushing Type

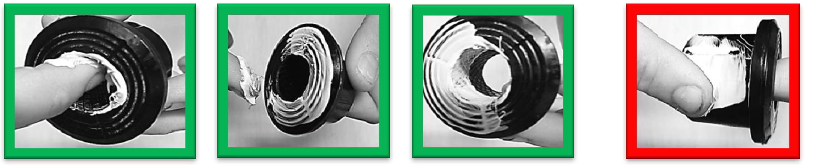

Shackle Bush
DO:
Use a liberal amount of grease filling the bush internal knurling/rings bore & flange face rings
DO NOT:
Grease outer body of bush

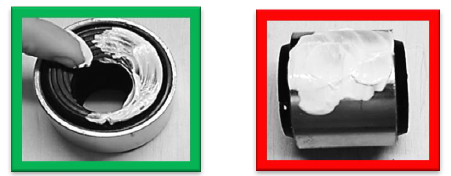

Shell Bush
DO:
Use a liberal amount of grease inside the bush Knurled/Rings bore & on the face flange rings
DO NOT:
Grease outer steel shell

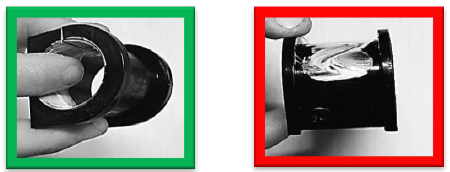

Sway Bar D Bush
DO:
Use a liberal amount of grease inside the bush Knurled/Rings bore
DO NOT:
Grease outer body of bush

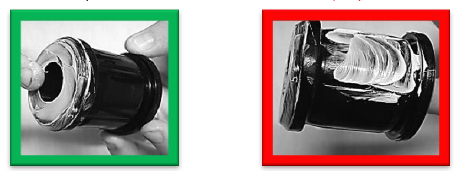

Cotton Reel Bush
DO:
Use a liberal amount of grease on the flange ears to aid in fitment, also inside the bush Knurled/Ring bore & on the face flange rings
DO NOT:
Grease outer body of bush
Safety Information
⚠️ Warning
- • Keep out of reach of children
- • Do not ingest
- • Avoid contact with eyes and skin
🏥 First Aid
- • Skin: Wash with soap and water
- • Eyes: Flush with water 10-15 mins
- • Ingestion: Drink water
- • Seek medical attention if required
Safe Handling
Keep away from oxidizing, strongly alkaline, and strongly acidic materials (risk of exothermic reaction).
